Design of complete string sets
Design of complete string sets
Insulator string sets can look totally different, however their function is always the same. Mechanical connection to the tower or pole structure by insulating the against earth potential.
Below you can find some examples of different string sets, where PowerKont and its partners have been involved.

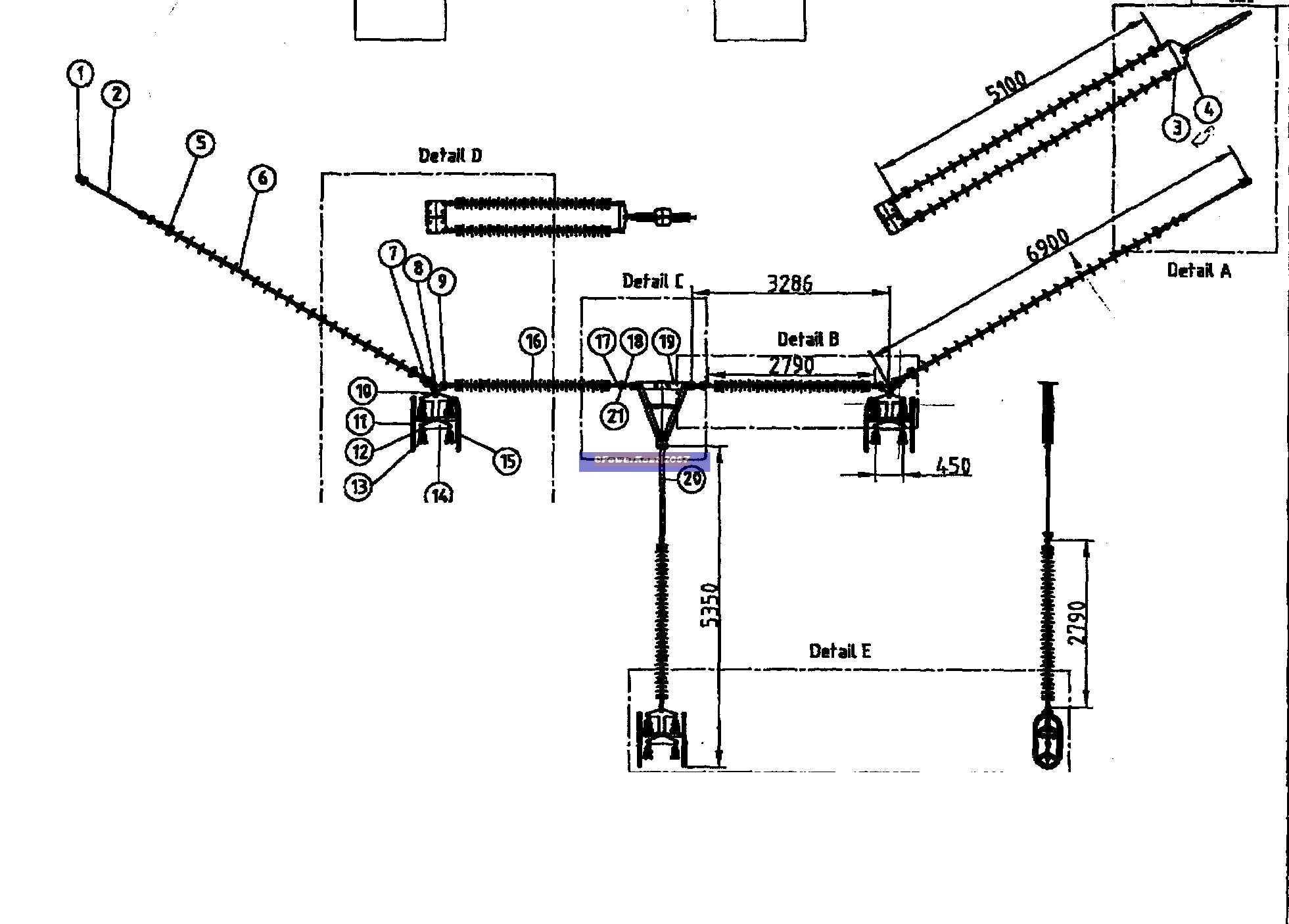

This is a typical cross rope design for 420 kV:
A flying 'V' for 420 kV:

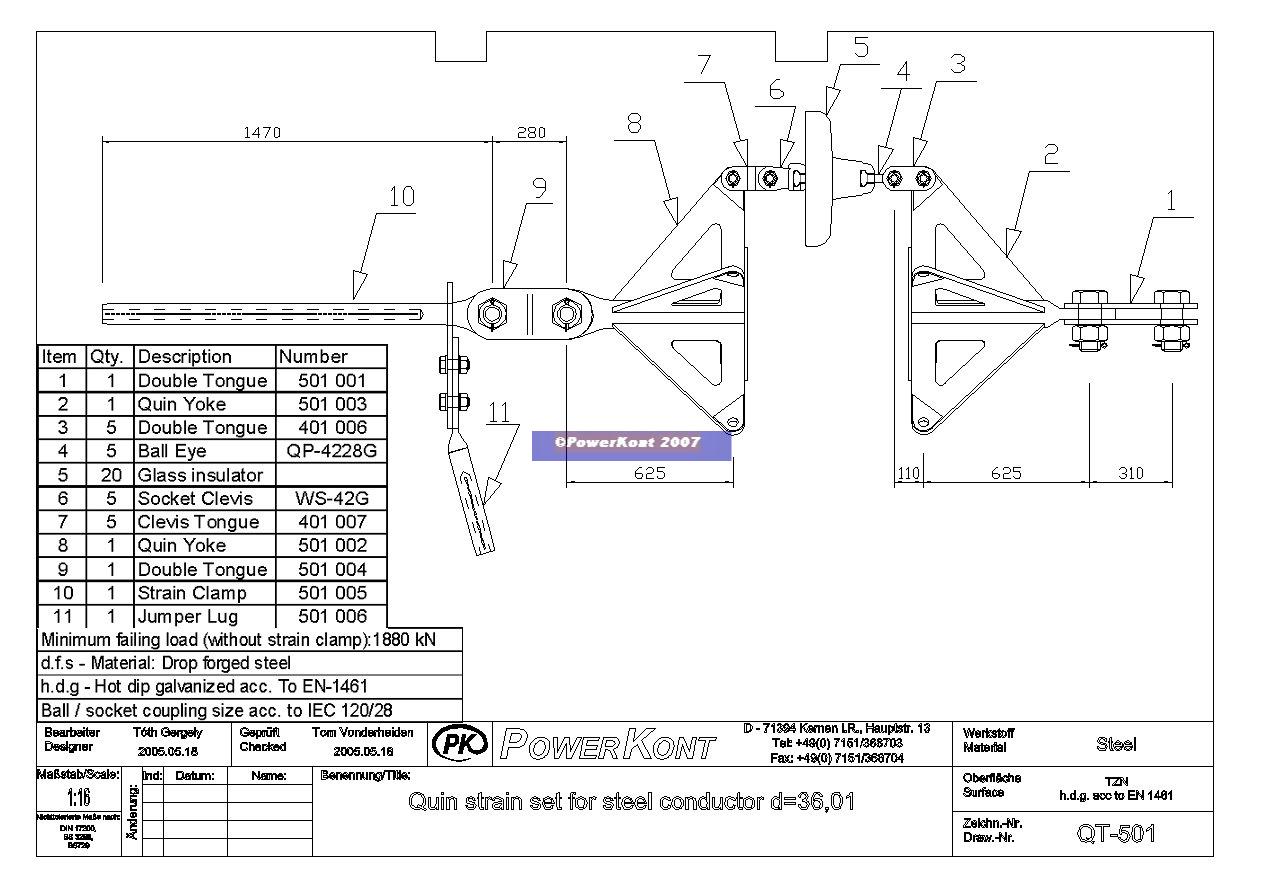

Quinteplet strain set for 2.000 kN:
500 kV strain set:
Typical german suspension longrod string set 420 kV:
